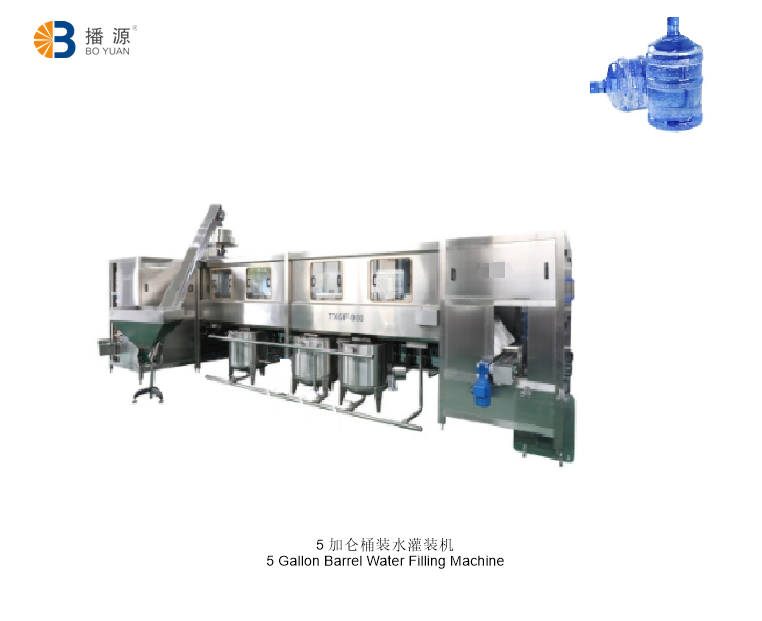

5 Gallon Bottled Water Filling Machine
1. Introduction: The FY-6P16W-1200 barrel/hour automatic direct-discharge frequency conversion filling production line is based on digesting similar manufacturing technologies at home and abroad, combined with the actual situation, considering compliance with the standards and the hygienic standards of the manufacturing industry. Stable, safe, alternative, economical and practical, it is designed and manufactured based on the strengths of many families and the essence of our factory, many technologies are the first in the country.
2. Features:
2.1 This bottled water filling equipment adopts several new technologies such as pneumatic transmission, fully enclosed pressure filling and liquid level detection. All actions, detection and control are controlled by microcomputer (PLC), which makes the machine more hygienic, safe and stable, and greatly reduces the occurrence of failures, make the scope of application wider.
2.2 This water bottle filling equipment integrates automatic cap removal, bottle washing, automatic bottle loading, internal flushing system, filling, air feeding cap, capping, capping, sleeve labeling, heat shrink film, automatic bagging, code plate machine and finished product conveying in one, the entire production process adopts closed operation, plus ultraviolet sterilization, ozone sterilization, to ensure that the entire bottle washing and filling process fully meets the relevant standards and regulations of the national health department, effectively preventing possible situations during the filling process The secondary pollution can achieve aseptic production.
2.3 This equipment adopts high-quality 304/316 stainless steel, with novel design, simple operation and precise positioning. It is the most ideal equipment for three or five gallon conveying production.
3. Comprehensive advantages :
3.1 Complete packaging production line:
3.1.1 Have an accurate understanding of product handling and packaging methods, and provide customized customization based on the actual situation of the customer, so that the customer can obtain the greatest benefit with the best price and performance ratio;
3.1.2 An expert and experienced team selects models, provides solutions and implementation content for customers, so that customers can obtain a complete one-stop service;
3.1.3 Strictly abide by the national drinking water sanitation standards and food sanitation national sanitation standards; every part and assembly process that constitutes the production line meets food sanitation requirements; we can guarantee the repeatability and stability of each operation of the production line Provided to every user of packaging production line;
3.1.4 Each machine online is closely integrated by experienced engineers and experts in related industries, and can provide good after-sales service;
3.1.5 The equipment of the whole line constitutes a technically coordinated whole, which can ensure simple and accurate production and operation at a very high level of production technology;
3.1.6 Can provide the entire line of centralized real-time control and display system.
4. Comprehensive performance:
4.1 Operation menu in English and Chinese, easy to use;
4.2 PLC control system, sensitive photoelectric detection system;
4.3 The best price-performance ratio of the equipment;
4.4 The key components adopt European, American or Japanese original components;
4.5 Complete product quality assurance system;
4.6 Timely and thoughtful after-sales service system;
4.7 If any unit on the line fails, the entire production line can be set to automatically stop and send an alarm.
4.8 The production efficiency of the whole line is ≥99%.
5. The standard configuration:
5.1 It is made of 304 stainless steel to ensure the quality of material, plate thickness and welding production.
5.2 Original fully enclosed motor, southern water pump.
5.3 PLC microcomputer selection program control system (Japan "Mitsubishi" PLC).
5.4 Fully automatic bottle loading system.
5.5 Fully automatic flushing and drainage system (the pressure of flushing barrel can reach 2-3kg).
5.6 Fully automatic pneumatic valve (304 valve, imported pneumatic components).
5.7 Fully automatic barrel washing machine (using heat-preserving closed fast backflow device to save energy and reduce consumption).
5.8 Direct discharge frequency conversion filling machine (using non-contact fully enclosed frequency conversion filling process).
5.9 Fully automatic cap feeding, cap arranging, cap capping and capping in one.
5.10 Automatic lower lid (using a centrifugal mechanism for discharging lid)

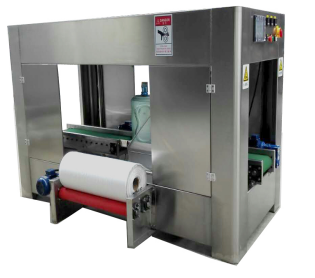

5.11 The heat shrinkable film machine adopts electronic detection and steam heating to realize energy saving, environmental protection and extremely high shrinkage uniformity.
5.12 Ultra-thin light guide plate technology lamp inspection.
5.13 Straight-line bucket (straight-line circular walking, spring chain imported
